LED Driving Module for Head Lamp

Model : LDMA-500

LDMA-500 is the device for processing the LED Arrays constant current applying to next generation automobile Matrix Head Ramp. It can single control each 8 channel on the basis of warm/cool and consist LED Driving Module that can control Left/Right Lamp on the basis of MCU.

  • Photo Source : Mercedes-Benz

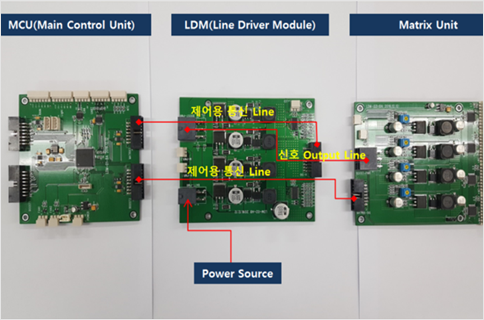

  • LDMA-500

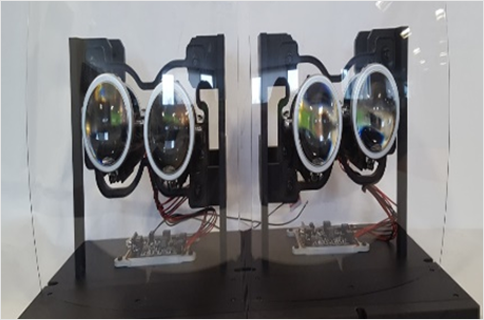

  • Head Lamp with LDMA-500

Accelerometer
  • - Single-ended primary-inductance converter (SEPIC)
  • - Input Voltage: 4 V–40 V
  • - Output Voltage: 4 V–75 V
  • - Output Current: Max 1A
  • - FOUR Regulation Loops, Constant-
  • - Current & Voltage Output
  • - PWM and Analog Dimming
Matrix Board Specification
  • - 8 Series x 4ch LED Matrix control.
  • - Programmable 10-bit PWM Dimming
  • - Multi-Drop UART Communication Interface
  • - FOUR Regulation Loops, Constant-Current and Voltage Output
  • - Input Voltage : 4 V–75 V
  • - Output Voltage : 4 V–75 V
  • - Output current range = MAX continuous 2A.
