Anti-Vibration System
Model : AVS-1000
AVS-1000 is an integrated system that measures the inherent vibration of a motor-based device in semiconductor, display, and LED manufacturing equipment and modifies the Motion Profile in the Motion Controller to minimize residual vibration when the motor is moved.
-

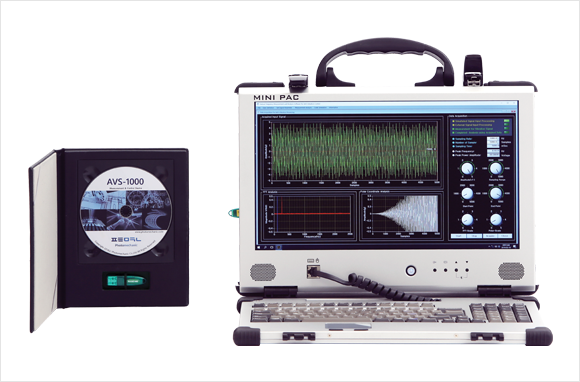

AVS-1000 (Integrated System)
-

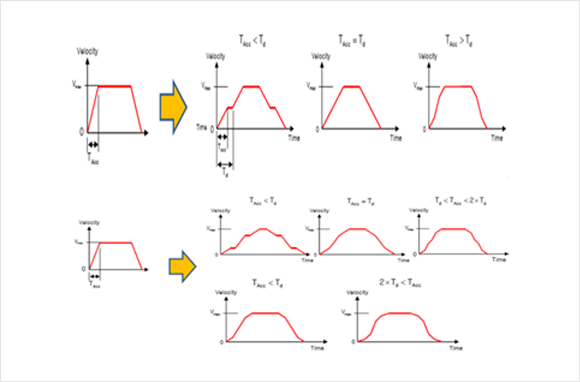

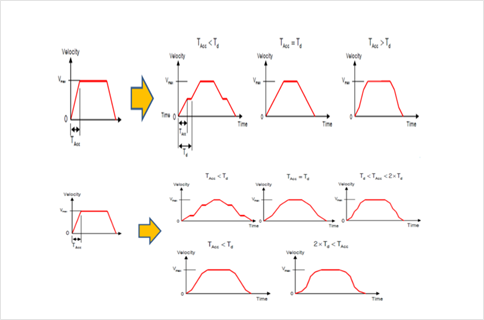

Generated Motion Profile
General Specification
- Accelerometer
-
IEPE(Integrated Electronic Piezo Electronic) Type
- ± 10g : 490mV/g, Resonant Frequency 17.0kHz
- ± 25g : 195mV/g (Default Included) , Resonant Frequency 54.0kHz
- ± 50g : 100.3mV/g, , Resonant Frequency 54.0kHz - Sampling Rate
- 30kHz /Ch
- Input Shape Method
- ZV, ZVD, EI
- Signal Analysis Software
- ZV, ZVD, EI
- Acceptable Motion
Controller for Code
Generation -
- Deltatau : CRUISER, CLIPPER, CLIPPER PLUS Based on Turbo Pmac CPU
- Ajinextek : PCIe-R32xx-MLIII, PCI-N404 Board
- Comizoa : COMI-LX504L
-

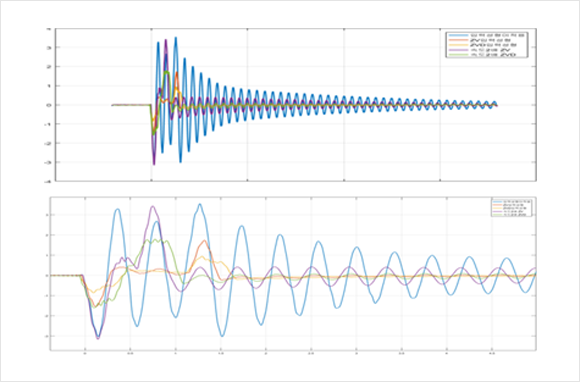

General Vibration vs. Anti-Vibration
-

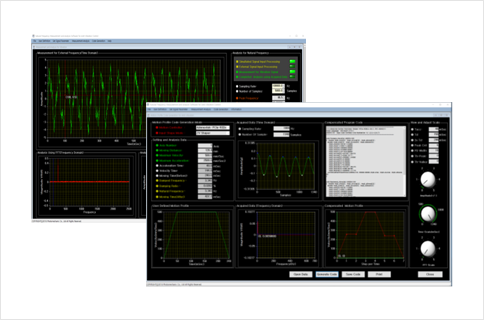

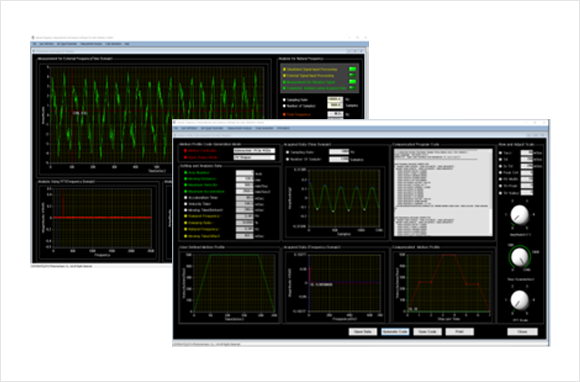

Vibration Analysis & Code Generation S/W

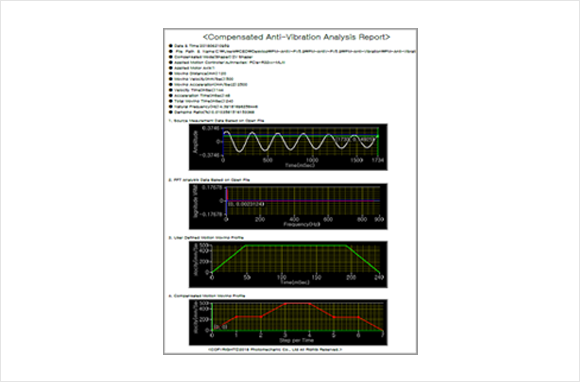

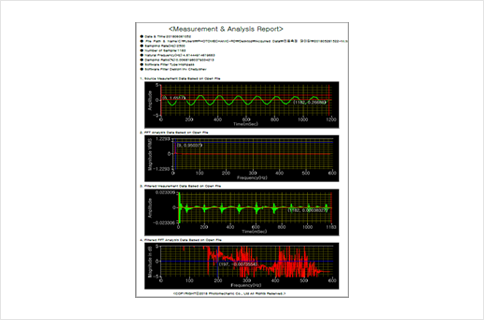

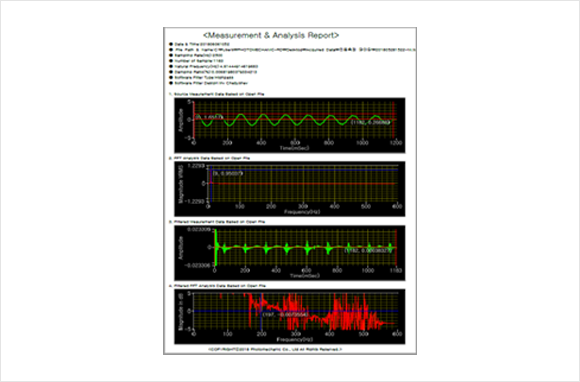

Report Generation
- Vibration Analysis Data, Motion Profile Data
Acquisition Data & Motion Profile Code Generation

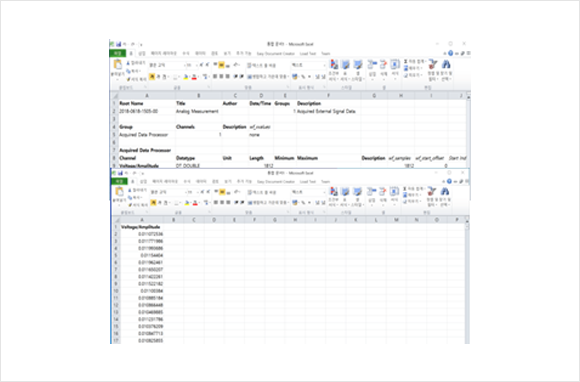

- Acquisition Data
- Microsoft Excel Compatibility

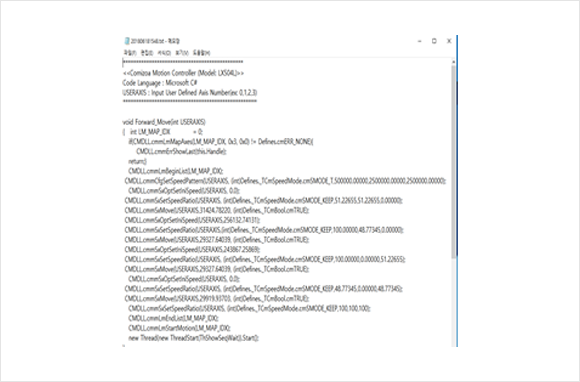

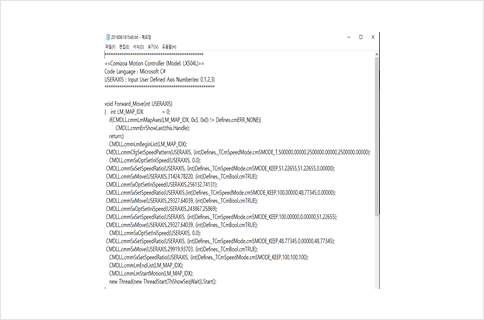

- Motion Profile Code Data
- Programmer Friendly Code Type (C/C++, C#)

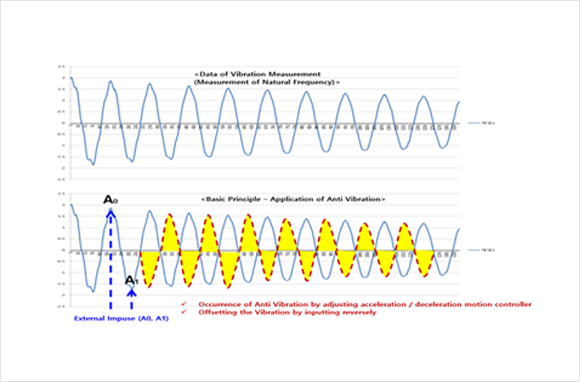

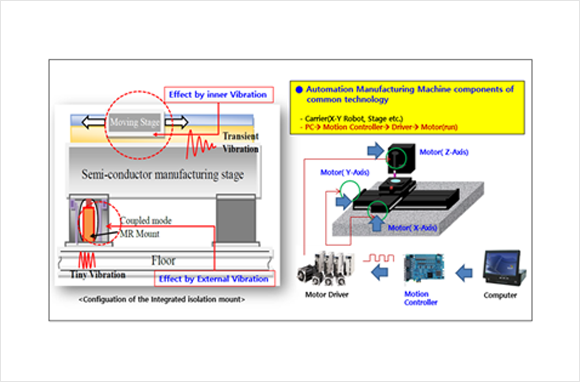

Theoretical Background
- Principle of Software-Based Anti-Vibration System

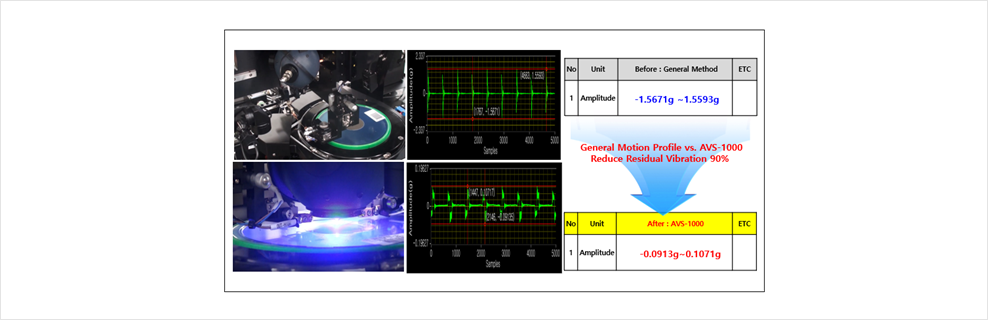

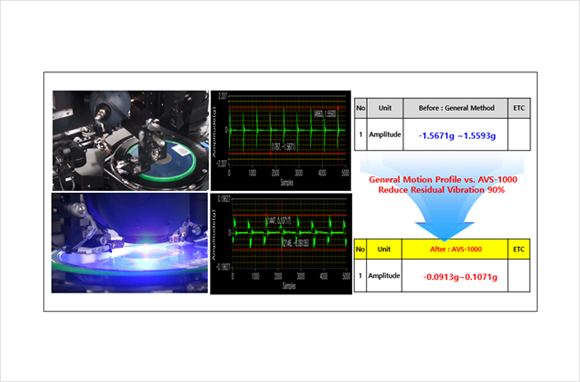

Experimental Data
- Case of High Speed Moving Stage for LED Chip Probing System

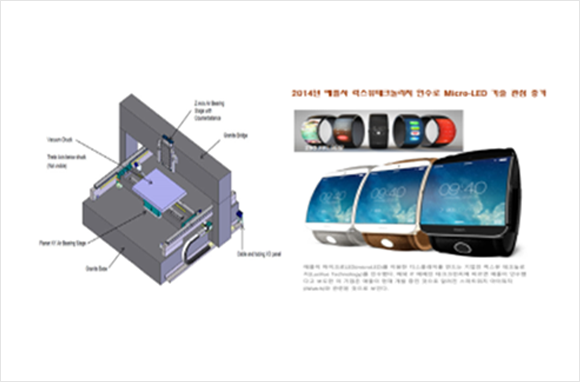

AVS-1000 Application
-
Semiconductor, FPD, LED Machine
-

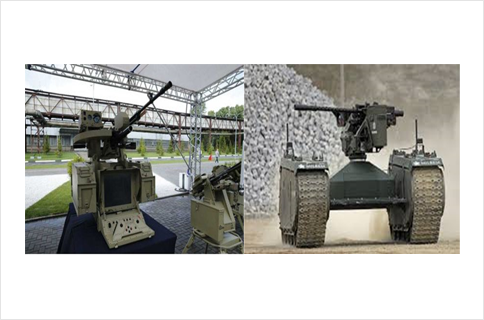

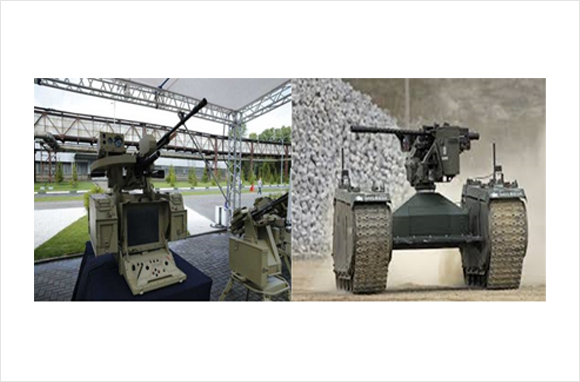

Defense Industry Application
-

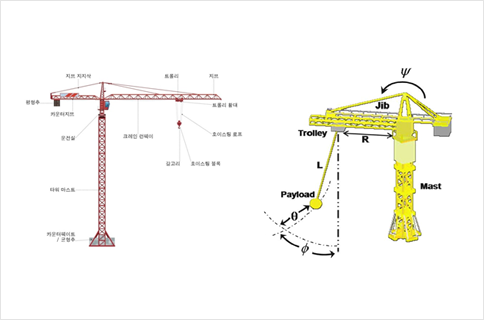

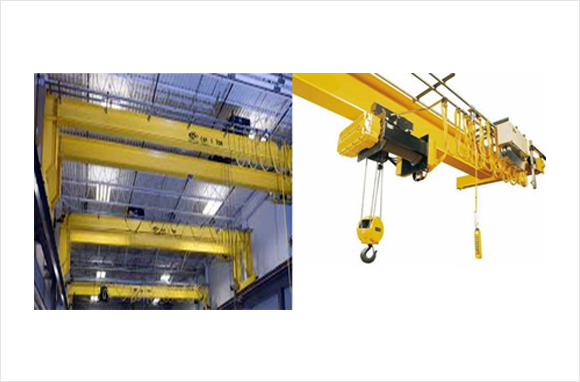

Industrial Machine : Tower Crane
-

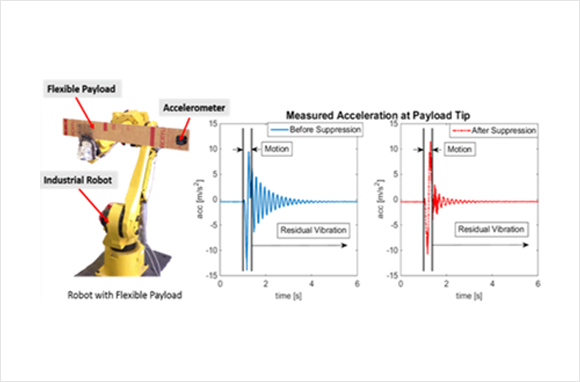

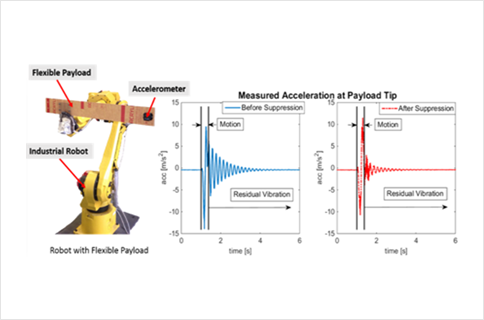

Robot Application
