Laser Diode Assistant Module for Head Lamp

Model : LDAA-500

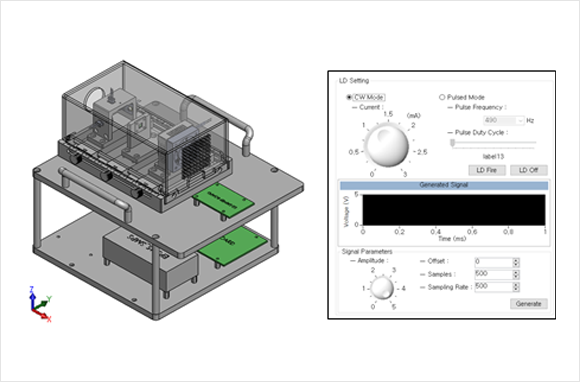

LDAA-500 means Testing unit and Laser Diode driver as Assistant Beam for expanding next generation automobile Matrix Head Lamp's upwardness and sight. LDDA-500 can control the CW / Pulse Mode through the laser diode current and PWM contorl. User can do the test as adjusting the phosphor, lens and etc's testing condition.

•

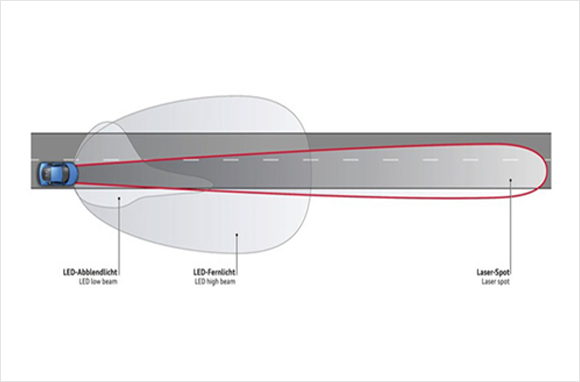

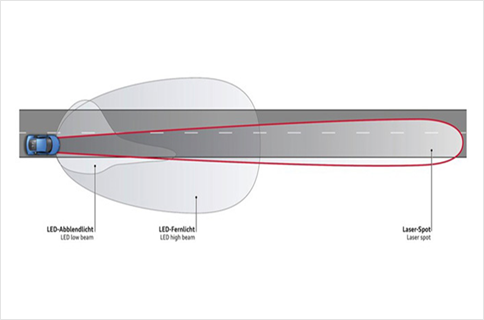

  Comparison of Laser spot light irradiation distance compared to conventional upside

•

  System Dimension [W x D x H] : 240 x 200 x 200 mm
  Weight : About 4 kg

•

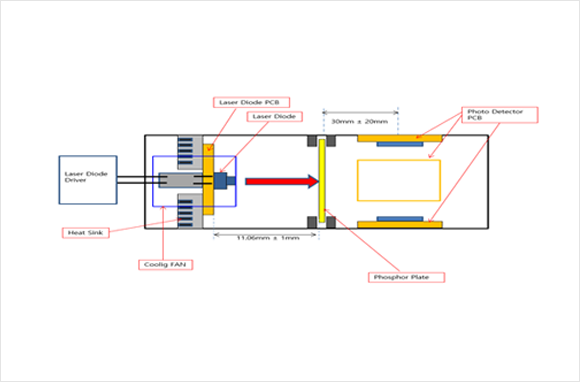

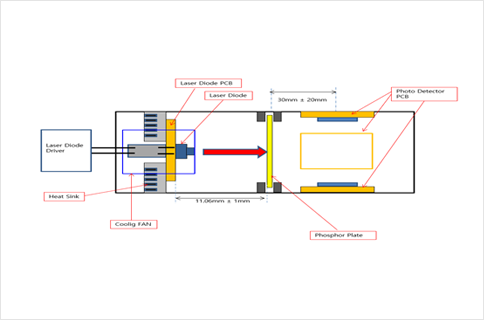

  LDAA-500 Configuration

•

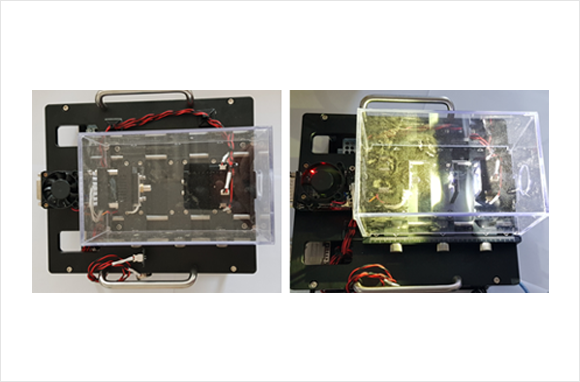

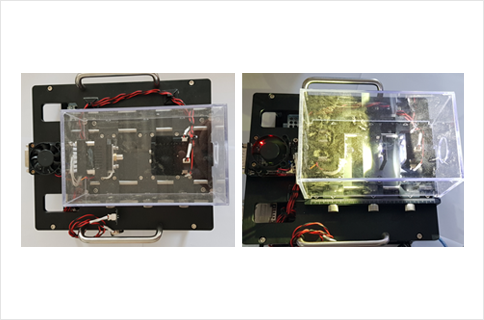

  Laser Diode Excitation Before/After
